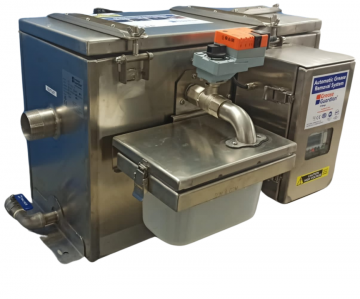

Marine Guardian MGD4

Marine Guardian D4 Automatic Grease Removal Device 110/240V 2.25 l/s

Grease Removal Unit for SuperYachts/Ships

Grease Guardian D4 Marine Configuration

FLOW: 2.25 l/s
BUILD: 316/16G Stainless Steel Tank
CAPACITY: 85 Litres
FEATURES: Pro-Clean (A), Waste Shut Off Valves for High Seas (HS), Filter-Basket (IS), Eco-Mode
EXTRAS: Frames. Oil Level Sensor, Aero-Flow, ST Traps
WARRANTY: Up to 10 years on tank (1-3 year parts)

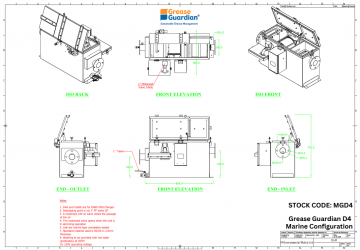

STOCK CODE: MGD4

MGD4 Marine Grease Guardian (2.25 l/s, 85 Litres capacity)

MARINE GREASE GUARDIAN  GEBRUIKSAANWIJZING MANUAL

KEY FEATURES:

• Automatic grease trap and grease removal units with 5 l/s , 7.5 l/s and 10 l/s & 20 l/s Flow rate,
• Ideal for centralised installations with high number of meals preparation per day and confined space with restricted/ limited access.
• Traps food/solids waste and grease - Automatic solid transfer by pump.
• Automatic grease removable programmable skimming cycles.
• Skid mounted in line or stackable so as to maximise space available
• Shut off valves for high sea operation, automatic washing system as standard.
• Flexible Joint and shock mount available as option.
• Material, Exterior 14 gauge 316 stainless steel bright finish.
• Suitable for Navy convoy , Commercial Vessel and Cruise Liners with meal preparation form 400 to 4800 x day
• Easy to install and maintain in confined spaces, with BMS volt free contacts.
• Customised skid can be provided according to customer needs.
