Marine Guardian MGD3

Marine Guardian D3 Automatic Grease Removal Device 110/240V 1.75 l/s

Grease Removal Unit for SuperYachts

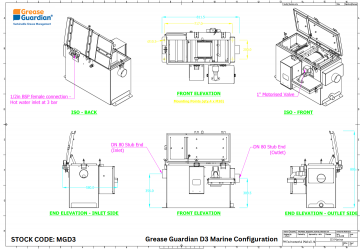

Grease Guardian D3 Marine Configuration

FLOW: 1.75 l/s
BUILD: 316/16G Stainless Steel Tank
CAPACITY: 50 Litres
FEATURES: Pro-Clean (A), Waste Shut Off Valves for High Seas (HS), Filter-Basket (IS), Eco-Mode
EXTRAS: Frames. Oil Level Sensor, Aero-Flow, ST Traps
WARRANTY: Up to 10 years on tank (1-3 year parts)

STOCK CODE: MGD3

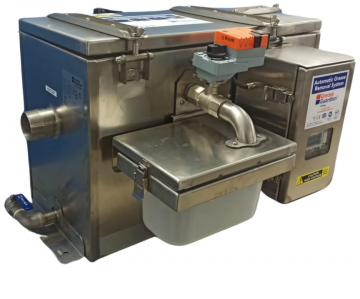

MGD3 Marine Grease Guardian (1.75 l/s, 50 Litres capacity)

MARINE GREASE GUARDIAN  GEBRUIKSAANWIJZING MANUAL

KEY FEATURES:

• Automatic grease trap and grease removal units with 1.75 l/s , 3 l/s and 4.5 l/s Flow rate, ideal for centralised installations.
• Removable solids basket or Automatic solids transfer.
• Solid Basket capacity 8 lts & 9.5 lts volume on manual model.
• Automatic solid transfer by pump.
• Traps food waste and grease and removes grease with programmable skimming cycles.
• Shut off valves for high sea operation, automatic washing system as standard.
• Material, Exterior 16/14 gauge 316 stainless steel bright finish.
• Suitable for Superyacht and Commercial Vessel with meal preparation form 100 to 350 x day
• Easy to install and maintain in confined spaces, with BMS volt free contacts.
• Customised skid can be provided according to customer needs.
