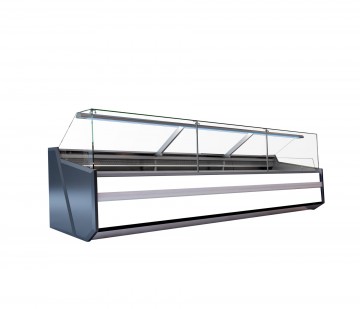

Koelvitrine koeltoonbank met glazen opbouw.
Koelvitrine koeltoonbank met glazen opbouw.
Mooie gekoelde vitrine
Geschikt voor kantine, snackbar, winkel, avondwinkel, traiteur.
Statische koelvitrine geschikt om al uw producten in uit te stallen.
met verlichting.
| Bestelnummer: | G430.0180 | G430.0185 | G430.0190 |
| Afmeting: mm | 1645x1180x1225 | 1960x1180x1225 | 2580x1180x1225 |
| Vermogen: | 230v / 0.32 kW | 230v / 0.46 kW | 230v /53 kW |
| Etaleer opp. | 1 m2 | 1.3 m2 | 1.7 m2 |
| Gewicht | 225 | 250 | 350 |
| Spanning (Volt) | 23 volt | ||
| Frequentie (Hz) | 50 Hz | ||
| Koelmiddel | R 404 A | ||
| Temp.bereik(°C) | +1/ +10 | ||
| Type Koeling | Statisch | ||
| Verlichting | Ja | ||
| Ontdooisysteem | Automatisch | ||
Fig.1 Construction of the device
1 – Granite working top
2 – Lamp
3 – Glass display shelf
4 – Front screen
5 – Display shelves (flat; two-level; three-level)
6 – Front bumper
7 – Front
8 – Frame
9 – Storage chamber
10 – Rail (condensate outflow after defrosting the evaporator)
11 – Evaporator
12 – Fish tank (“FISH” type)
13 – Evaporator in „Deep” devices
14 – Cooling aggregate
15 – Set of ventilators „Deep”
16 – GN containers (“GASTRO” type)
17 – Nameplate
18 – ABS sides
19 – Device levelling feet
20 – Ventilator (after removal access to condenser fins)
21 – Control panel (temperature regulator /switches)
22 - Storage chamber doors
